Configuration

Configuration splits into what the operator sets at install time and what the admin changes at runtime from the System Setup screen.

1. Install time (operator)

• A TOML config file (config.toml) bootstraps the first admin account (idempotent). Path via --config / CONFIG_FILE.
• Required env: JWT_SECRET, INGEST_TOKEN, DOC_SIGNING_KEY, DATABASE_URL. Optional: FRONTEND_DIR, SMTP_*, COOKIE_DOMAIN, SINK_HOST, DNS_ZONE.
• On AWS these are rendered into the instance from SSM SecureString by userdata — secrets never sit in plaintext.

2. Runtime (admin) — the System Setup screen

Once installed, the admin configures the rest from System Setup (/installation.html). Changes take effect immediately — no restart.

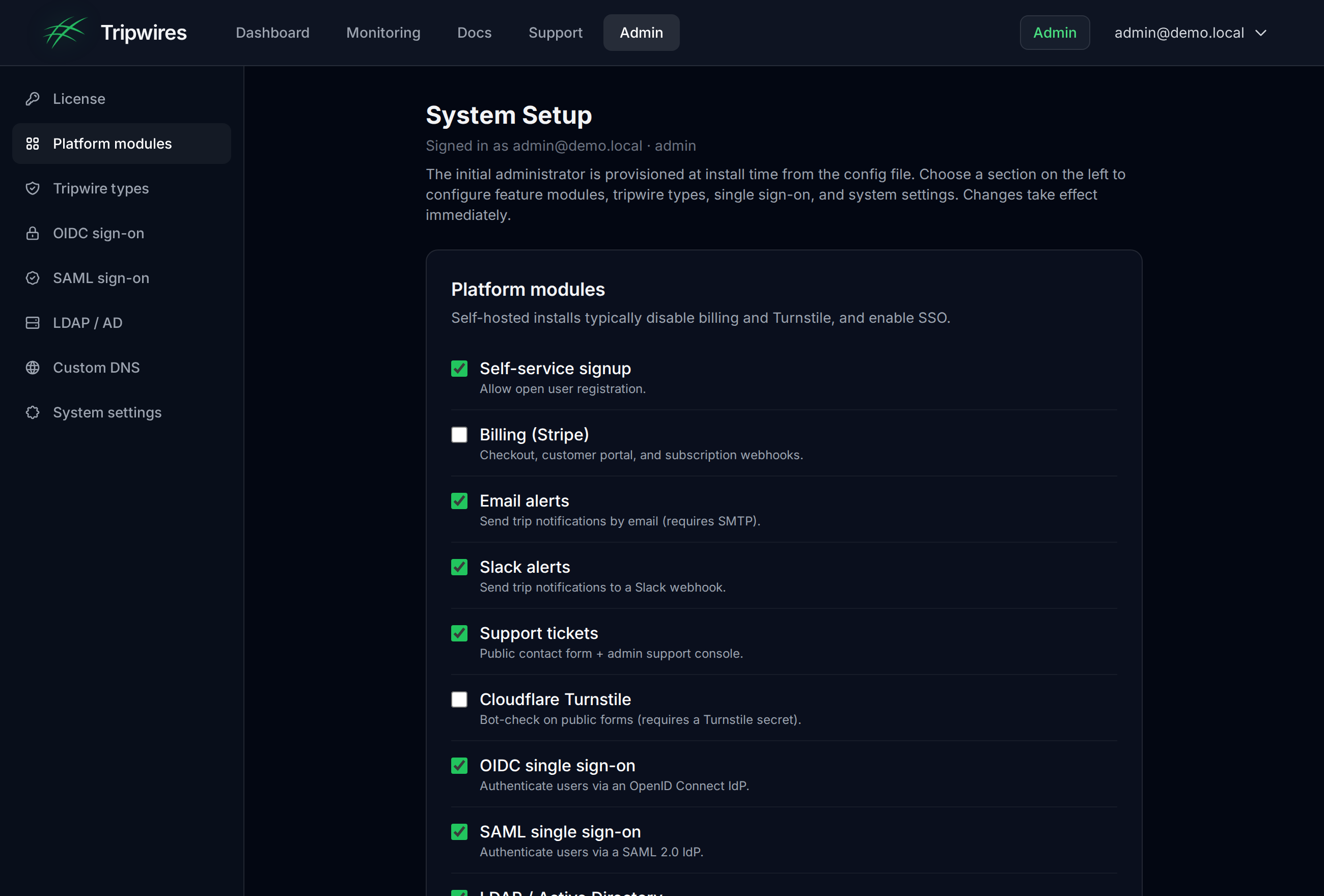

The System Setup screen — platform modules, tripwire-type toggles, OIDC / SAML / LDAP, and DB-backed system settings.

• Platform modules — signup, billing, email / Slack alerts, support, Turnstile, SSO. (Self-host only.)
• Tripwires — a labelled group with per-type toggles: protocol honeypots, canary documents, cloud credentials, execution triggers, QR codes, phishing detection. Disabling a type blocks its creation.
• System settings — DB-backed key/value pairs.

Custom DNS for tripwires

By default a self-hosted server bakes the gettripwires.com sink into new tripwires. Point them at your own DNS so beacons and DNS-token lookups resolve to your sink instead. Configure it in Admin → System Setup → Custom DNS (takes effect immediately, no restart) or via environment variables. Precedence: System Setup config → environment → built-in default.

• Honeypot domain — the base domain (e.g. canary.acme.example). The beacon host and DNS-token zone derive from it as sink.<domain> and d.<domain>.
• Sink host (optional override) — the host tracking URLs and document call-homes hit. Point its DNS at your sink / reverse proxy.
• DNS-token zone (optional override) — the zone used for DNS-token hostnames; delegate it with an NS record to your sink’s resolver.

HONEYPOT_DOMAIN=canary.acme.example   # derives sink.<domain> + d.<domain>
SINK_HOST=sink.canary.acme.example    # explicit beacon-host override
DNS_ZONE=d.canary.acme.example        # explicit DNS-token zone override

Only tripwires created after the change use the new DNS; existing tripwires keep the host they were minted with.

SIEM / SOC forwarding

Forward every detection to your security team's collector, deployment-wide, in addition to per-user Slack/email. Two connectors, both optional and best-effort (a slow or absent collector never blocks detection recording):

Example CEF line:

CEF:0|Levantar|Tripwire|1.0|tripwire-triggered|Tripwire decoy triggered|8|externalId=tw1 cs1Label=TripwireName cs1=prod-db src=8.8.8.8 app=postgres rt=2026-06-02T00:00:00Z

Verify it with the mock SOC collector

A dependency-free mock collector ships in deploy/siem-mock/ — it listens for the CEF syslog and JSON webhook and prints each detection, so you can confirm forwarding end-to-end before wiring your real SIEM:

# 1. run the mock collector
node deploy/siem-mock/siem-mock.mjs

# 2. point the control server at it
SIEM_WEBHOOK_URL=http://<host>:8088/ingest
SIEM_SYSLOG_ADDR=<host>:5514

# 3. trip a decoy — both a CEF line and a JSON event arrive at the collector

SCIM 2.0 provisioning (directory integration)

Let an identity provider (Entra ID, Okta, …) push user and group lifecycle into Tripwire — the companion to SSO. It automates the leaver case (deprovision on offboard) and syncs AD/IdP security groups → roles. Point your IdP's SCIM connector at https://<host>/scim/v2 with a bearer token.

Supported: Users (create / get / list / replace / active toggle / delete) and Groups (create / get / list / member PATCH / delete) with pagination, plus ServiceProviderConfig. A leaver (active:false or DELETE) disables the account rather than hard-deleting it, preserving the audit trail. Every SCIM mutation is written to the audit log (actor scim).

Verify end-to-end with the bundled mock IdP (joiner → AD-group sync → leaver):

SCIM_TOKEN=<token> ./deploy/scim-mock/provision.sh alice@corp.example

Feature toggles — what applies where

• Tripwire-type toggles apply to both the SaaS and self-host. The SaaS keeps every implemented type on; a self-hosted admin configures them per installation.
• Platform modules (billing / SSO / alerts / support) are self-host only; the SaaS gates those by subscription tier.
• Gating lives in the composition root / shim, never in shared core use cases — so the two deployments can't bleed into each other.

SAML 2.0 single sign-on

Enable the sso_saml module, then fill in the SAML 2.0 SSO section of System Setup. The control server is a SAML service provider (SP) that initiates login, verifies the IdP's signed assertion (signature, audience, destination, InResponseTo and validity window) and issues the normal session — the same path as OIDC and LDAP. Works with Keycloak, ADFS, Azure AD, Okta and any SAML 2.0 IdP.

• IdP Metadata URL — the IdP's SAML descriptor (e.g. Keycloak /realms/<realm>/protocol/saml/descriptor). Supplies the SSO endpoint and signing certificate.
• Service Provider Entity ID — typically this server's metadata URL, https://your-host/auth/saml/metadata.
• ACS URL — https://your-host/auth/saml/acs (must match exactly; the assertion's Destination is checked against it).
• IdP Certificate — optional. The metadata URL normally provides it; paste one to pin or to cover a rotation.

Register this server with your IdP using its published SP metadata:

GET https://your-host/auth/saml/metadata   # SP descriptor (entity id, ACS, SP cert)
GET https://your-host/auth/saml/login      # start SP-initiated login
POST https://your-host/auth/saml/acs       # IdP posts the signed assertion here

Optional environment variables (also seedable instead of System Setup):

SAML_IDP_METADATA_URL=...   # enables sso_saml + sets the IdP metadata URL
SAML_ENTITY_ID, SAML_ACS_URL
SAML_IDP_CERT               # optional PEM to pin the IdP signing cert (metadata normally supplies it)
SAML_SP_KEY, SAML_SP_CERT   # SP signing keypair (PEM); ephemeral if unset
SAML_ADMIN_ROLE=tripwire-admin   # group/role value that grants the admin role

An assertion's email attribute (or an email-format NameID) identifies the user; a groups/memberOf/role attribute matching SAML_ADMIN_ROLE grants admin. Set SAML_SP_KEY/SAML_SP_CERT in production so the published SP metadata is stable across restarts.

Observability — health probes & metrics

The control server exposes operational endpoints for your platform team (the SaaS reports to CloudWatch; on-prem scrapes these directly). No configuration is required.

• GET /healthz — liveness. Returns 200 ok as long as the process is up.
• GET /readyz — readiness. Returns 200 ready only when the database is reachable, otherwise 503. The Docker image wires this as its HEALTHCHECK; point your k8s readiness probe at it too.
• GET /metrics — Prometheus text exposition: tripwire_http_requests_total (by method/code), tripwire_trips_detected_total, tripwire_notifications_sent_total (by result), plus tripwire_database_up, tripwire_uptime_seconds, go_goroutines and tripwire_build_info.

Metrics expose aggregate counts only (no secrets). To require authentication when exposing /metrics beyond your network, set METRICS_TOKEN and have Prometheus send Authorization: Bearer <token>.

scrape_configs:
  - job_name: tripwire
    metrics_path: /metrics
    static_configs:
      - targets: ["your-host:8080"]
    # authorization:           # only if METRICS_TOKEN is set
    #   credentials: <token>

Air-gapped / zero-egress build

The admin UI served by the on-prem control server makes no third-party requests — it is safe for air-gapped and privacy-sensitive deployments. The SaaS build keeps these integrations; only the self-host image is stripped, at image-build time, by deploy/strip-egress.sh.

• Removed entirely: product analytics, the Termly cookie banner, Google Fonts (the UI falls back to the system font stack), and Stripe (billing is disabled on self-host).
• Vendored locally: syntax highlighting (highlight.js) and the technology logos are served from /assets/vendor/ inside the image instead of a CDN.
• Turnstile: the CAPTCHA loader is replaced by a local no-op stub. The server already skips Turnstile verification unless TURNSTILE_SECRET is set, so forms work unchanged.

No configuration is required — the stock image is zero-egress by default. To confirm, watch the browser network tab on any page: every request stays on the control server's own origin.
